High Sensitivity Label Inspection Machine For 330mm Width Label Rolls

Focusight High-Speed Label Print Inspection Machines for 330mm Width Label Rolls

Model Number: FS-MAMBA-350

Short Introduction:

What: The Focusight Inspection Machine will precisely find out the defects of printing on cartons and reject the bad ones from the good ones automatically at high speed.

How: The Focusight cameras scan some good cartons as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing Defects like Color Misregistration, Color variations, Hazing, Misprints, Defect in the text, spots, splashes, varnishing missing & Misregistration, embossing missing & Misregistration, Laminating problems, Die-cut problems, Barcode problems, Holographic foil, cure & cast and many other printing problems.

Equipment advantages:

• It is suitable for highly efficient and accurate inspection of soft cigarettes label and electronic / medical / FMCG labels etc.
• Backup of QR code / monitoring code and other changeable information inspection (selective configuration)
• German high frequency 7K or 4KCCD colored line-scanning camera, foiling / varnish inspection station is available
• Constant refrigeration by industrial air conditioner which specialized for industrial control cabinet
• Effective inspection scope: printing defect, varnish defect, die-cutting defect, foiling defect, cutting defect, variable information defect
• Recognition of contrast defect in flat area with high sensitivity
• Accurate stop position while eliminating defects (specialized defect positioning, calibrating and identifying system, which is also applicable to PVC and PE materials)
• Hierarchical management of system parameter setting
• Integrated data management by adopting the configuration of one inspection host + N defect review machines
• Roll inspection occupies more than 90% of high-end flexible packaging market

Technical Specifications:

• Maximum detection Area 330 mm
• Roll diameter 800 mm
• Maximum detection speed 30 m / min – 120 m / min, customizable
• Image acquisition resolution ratio 0.08 mm x (0.05 mm – 0.15 mm), customizable
• External dimension of machine 2,600 mm (L) x 1,100 mm (W) x 1,700 mm (H)

Camera configuration

• 1-2 high speed cameras Common printing defect detection
• Film concave-convex detection station (optional)
• Software module (optional) Detection software module of two-dimensional code

Service Support:

• The warranty of our machine is 12 months and service are available lifelong.
• Our expert will answer any inquiry within 24-48 hours, and it will be solved as soon as possible.
• We can send enough technicians to the Buyer's company for installation and testing the machines.
• We supply the complete technical documents and the relative drawings of the electric components which were written in English
• 24 * 7 Online Support

Payment & Delivery

• Package: Plastic Package.
• Payment: By 30% T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L / C at sight.
• Delivery: 60 days after we get the down payment.

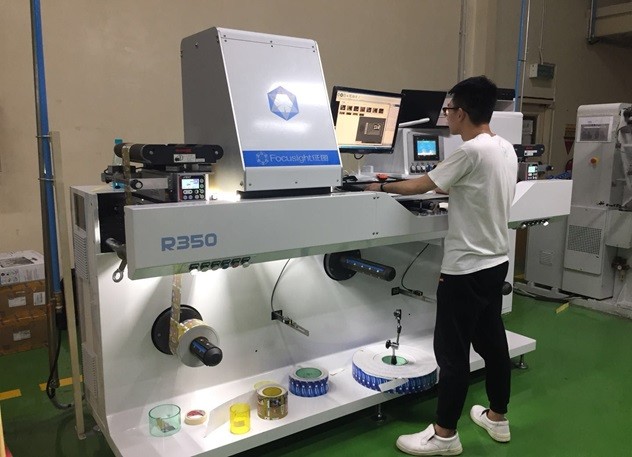

Pictures at Glance

focusight inspection machine

quality control equipment

High Sensitivity Label Inspection Machine For 330mm Width Label Rolls Images
